| 항목 |
내용 |
| Type |
Desktop or Panel Mounted |
| Display |
4-Digit digital display (Concentration display) ,Bar graph display (atm display) |
| Meas. Range |
0.1ppm ～ 100vol% O2
Auto Range or Fixed Ranges |
| Analog Output Range |
0-1/0-10/0-100/0-1,000ppm/1/10/100% |
| Repeatability |
±1% F.S (More than 1% range)
±2% F.S (Less than 1% range) |
| Gas Response |
Within 10 Seconds (90% Response) |
| Sampling Method |
Continuous Suction by Built-in Pump |
| Sample Gas Flow |
Approx. 1.5L/min |
| Sensor Flow |
60±10mL/min |
| Gas Connection Port |
PT 1/4”(F) |
| Reference Gas |
Atmospheric Gas |
| Warm-up Time |
Within 20 min |

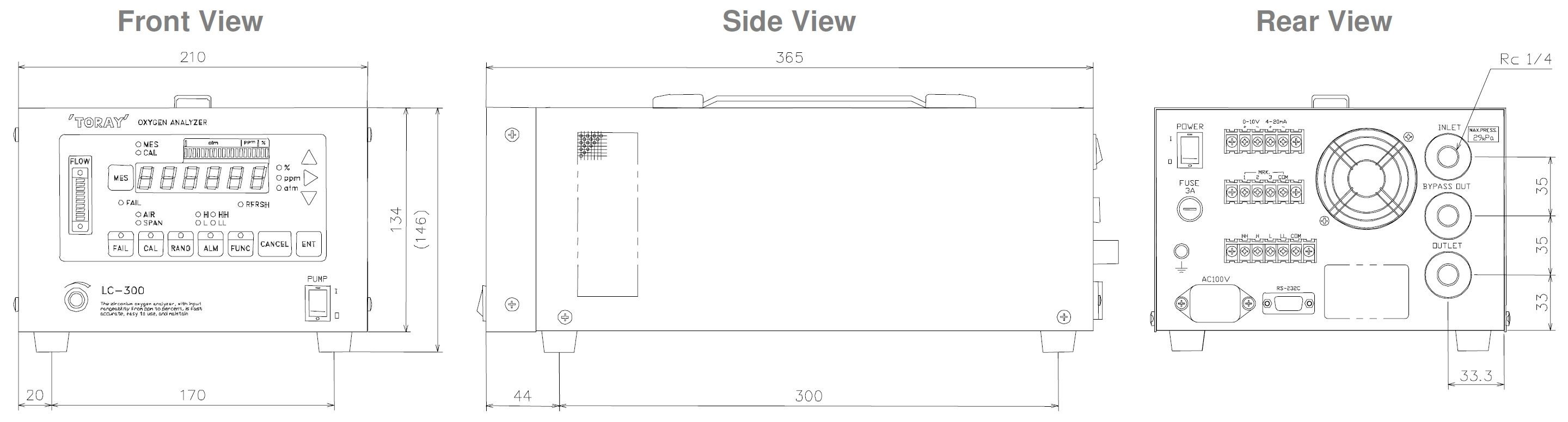

| Dimension |
210(W)×134(H)×375(D) Unit : mm |
| Weight |
Approx. 7kg |
| Analog Output |
DC 4～20mA, DC 0～10V |
| Transmission Output |
RS-232C Compliant |
| Alarm Output |
High High / High / Low / Low Low Alarm
(No-voltage Contact / Contact capacity: 30V DC/AC, below 3A) |
| Range Marker Output |
3 Points Output
(No-voltage Contact / Contact capacity : 24VDC/AC or less, 0.3A or less) |
| Power Source |
AC110V±10V 50/60Hz, 300VA |
| Sample Gas Conditions |
Maximum permissible pressure: 30kPa(0.03MPa) Max
Humidity : Dew point at or below ambient temperature
Temperature : 60°C or less |
| Installation Conditions |
Location : Indoors, Non-Explosion Area
Ambient Temperature : 0～40℃
Ambient Humidity : 45～85%RH, No Condensation |
